MuleSoft-Integration-Architect-I Free Practice Test

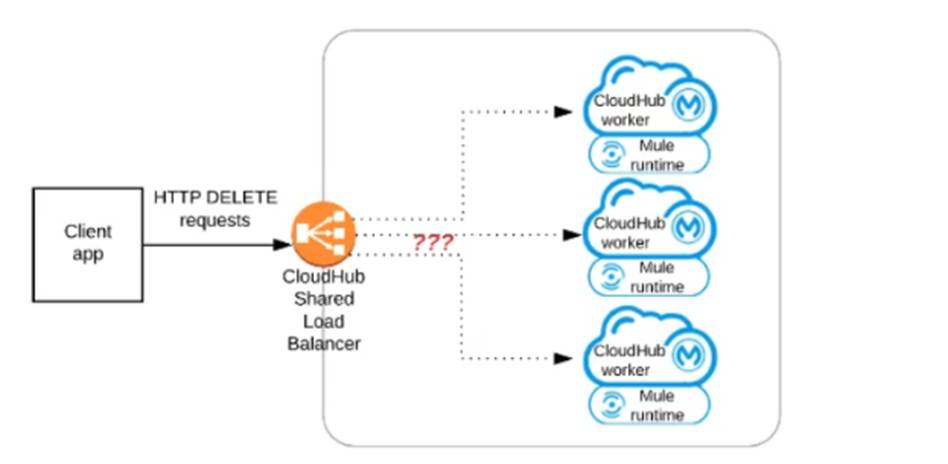

Refer to the exhibit.

A Mule application has an HTTP Listener that accepts HTTP DELETE requests. This Mule application Is deployed to three CloudHub workers under the control of the CloudHub Shared Load Balancer.
A web client makes a sequence of requests to the Mule application's public URL.
How is this sequence of web client requests distributed among the HTTP Listeners running in the three CloudHub workers?

1. A. Each request is routed to the PRIMARY CloudHub worker in the PRIMARY Availability Zone (AZ)
2. B. Each request is routed to ONE ARBiTRARY CloudHub worker in the PRIMARY Availability Zone (AZ)
3. C. Each request Is routed to ONE ARBiTRARY CloudHub worker out of ALL three CloudHub workers
4. D. Each request is routed (scattered) to ALL three CloudHub workers at the same time

Correct Answer: C

A new upstream API Is being designed to offer an SLA of 500 ms median and 800 ms maximum (99th percentile) response time. The corresponding API implementation needs to sequentially invoke 3 downstream APIs of very similar complexity. The first of these downstream APIs offers the following SLA for its response time: median: 100 ms, 80th percentile: 500 ms, 95th percentile: 1000 ms. If possible, how can a timeout be set in the upstream API for the invocation of the first downstream API to meet the new upstream API's desired SLA?

1. A. Set a timeout of 100 ms; that leaves 400 ms for the other two downstream APIs to complete
2. B. Do not set a timeout; the Invocation of this API Is mandatory and so we must wait until it responds
3. C. Set a timeout of 50 ms; this times out more invocations of that API but gives additional room for retries
4. D. No timeout is possible to meet the upstream API's desired SLA; a different SLA must be negotiated with the first downstream API or invoke an alternative API

Correct Answer: D

A set of integration Mule applications, some of which expose APIs, are being created to enable a new business process. Various stakeholders may be impacted by this. These stakeholders are a combination of semi-technical users (who understand basic integration terminology and concepts such as JSON and XML) and technically skilled potential consumers of the Mule applications and APIs.
What Is an effective way for the project team responsible for the Mule applications and APIs being built to communicate with these stakeholders using Anypoint Platform and its supplied toolset?

1. A. Use Anypoint Design Center to implement the Mule applications and APIs and give the various stakeholders access to these Design Center projects, so they can collaborate and provide feedback
2. B. Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth
3. C. Use Anypoint Exchange to register the various Mule applications and APIs and share the RAML definitions with the stakeholders, so they can be discovered
4. D. Capture documentation about the Mule applications and APIs inline within the Mule integration flows and use Anypoint Studio's Export Documentation feature to provide an HTML version of this documentation to the stakeholders

Correct Answer: B

A team has completed the build and test activities for a Mule application that implements a System API for its application network.
Which Anypoint Platform component should the team now use to both deploy and monitor the System AP implementation?

1. A. API Manager
2. B. Design Center
3. C. Anypoint Exchange
4. D. Runtime Manager

Correct Answer: D

Mule application muleA deployed in cloudhub uses Object Store v2 to share data across instances. As a part of new requirement , application muleB which is deployed in same region wants to access this Object Store.
Which of the following option you would suggest which will have minimum latency in this scenario?

1. A. Object Store REST API
2. B. Object Store connector
3. C. Both of the above option will have same latency
4. D. Object Store of one mule application cannot be accessed by other mule application.

Correct Answer: A
