JN0-683 Free Practice Test

In your EVPN-VXAN environment, you want to prevent a multihomed server from receiving multiple copies of BUM traffic in active/active scenarios. Which EVPN route type would satisfy this requirement?

1. A. Type 8
2. B. Type 7
3. C. Type 4
4. D. Type 5

Correct Answer: C

Which two statements are true about a pure IP fabric? (Choose two.)

1. A. Devices in an IP fabric function as Layer 3 routers.
2. B. An IP fabric supports Layer 2 VLANs.
3. C. Devices in an IP fabric must be connected to a fabric controller.
4. D. An IP fabric does not support Layer 2 protocols.

Correct Answer: AD

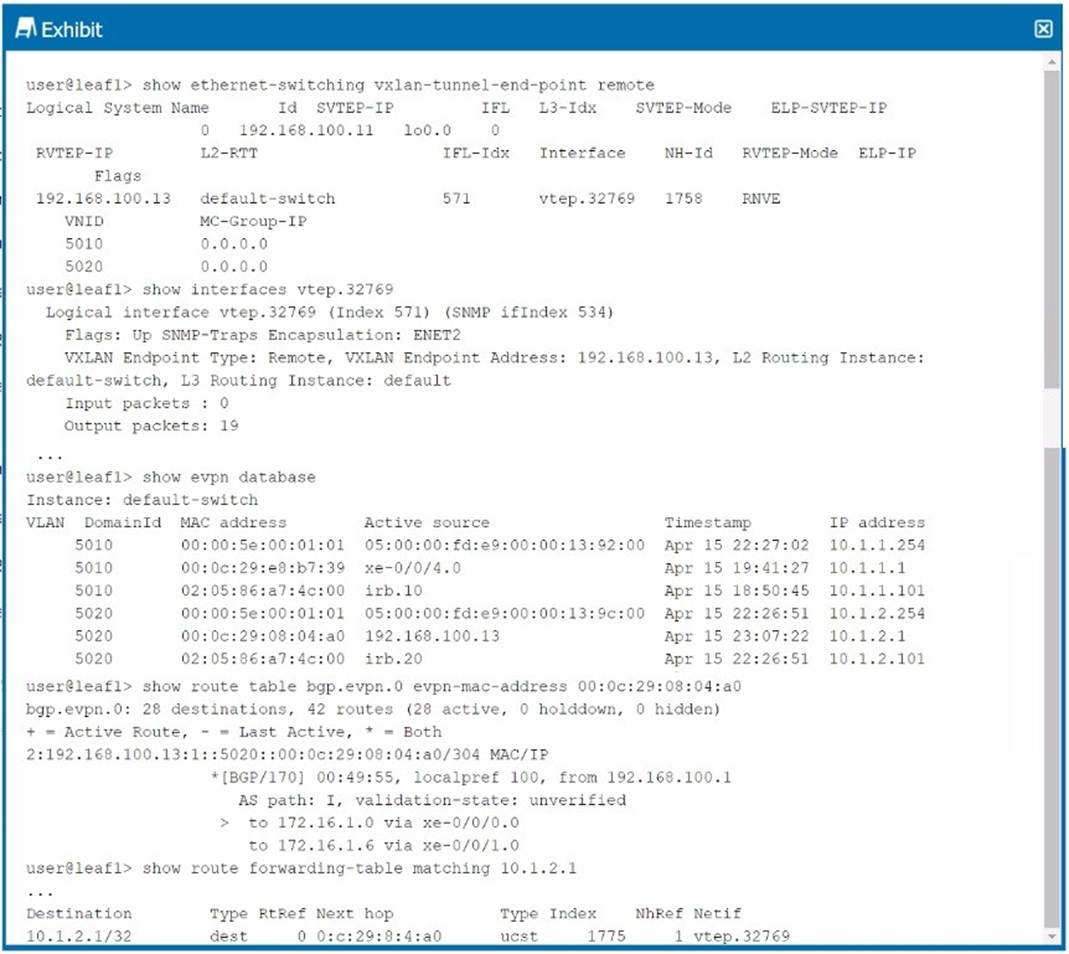

Exhibit.

Referring to the exhibit, Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) in a data center that uses an ERB architecture. What do you determine from the output?

1. A. The traffic is failing because load balancing is not configured correctly.
2. B. The traffic is entering the VXLAN tunnel.
3. C. Host1 and Host2 are directly connected to leaf1.
4. D. The irb.20 interface is not configured on leaf1.

Correct Answer: B

You want to convert an MX Series router from a VXLAN Layer 2 gateway to a VXLAN Layer 3 gateway for VNI 100. You have already configured an IRB interface. In this scenario, which command would you use to accomplish this task?

1. A. set protocols isis interface irb.100 passive
2. B. set vlans VLAN-100 13-interface irb.100
3. C. set bridge-domains VLAN-100 routing-interface irb.100
4. D. set protocols ospf area 0.0.0.0 interface irb.100 passive

Correct Answer: C

You are asked to interconnect two of your company's data centers across the IP backbone. Both data centers have their own unique IP space and do not require any bridging. In this scenario, which two actions would accomplish this task? (Choose two.)

1. A. Configure a Type 2 EVPN route for each unique prefix.
2. B. Configure peering for EVPN between border leaf nodes in each data center.
3. C. Configure a Type 5 EVPN route for each unique prefix.
4. D. Configure peering for EVPN between all leaf nodes within each data center.

Correct Answer: BC
