JN0-683 Free Practice Test

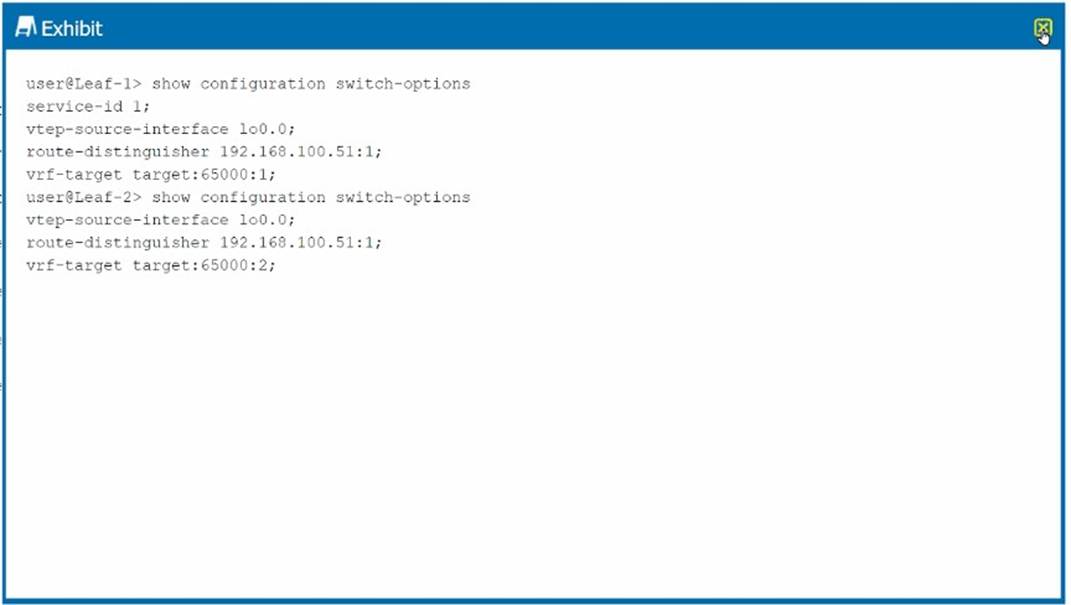

Exhibit.

Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.

1. A. Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
2. B. Configure the set switch-options vtep-source-interface irb.0 parameter on Leaf-1.
3. C. Configure the set switch-options vrf-target target:65000:1parameteron Leaf-2.
4. D. Configure the set switch-options route-distinguisher i92.168.100.50:1parameter on Leaf- 1.
5. E. Configure the set switch-options service-id 1 parameter on Leaf-2.

Correct Answer: CD

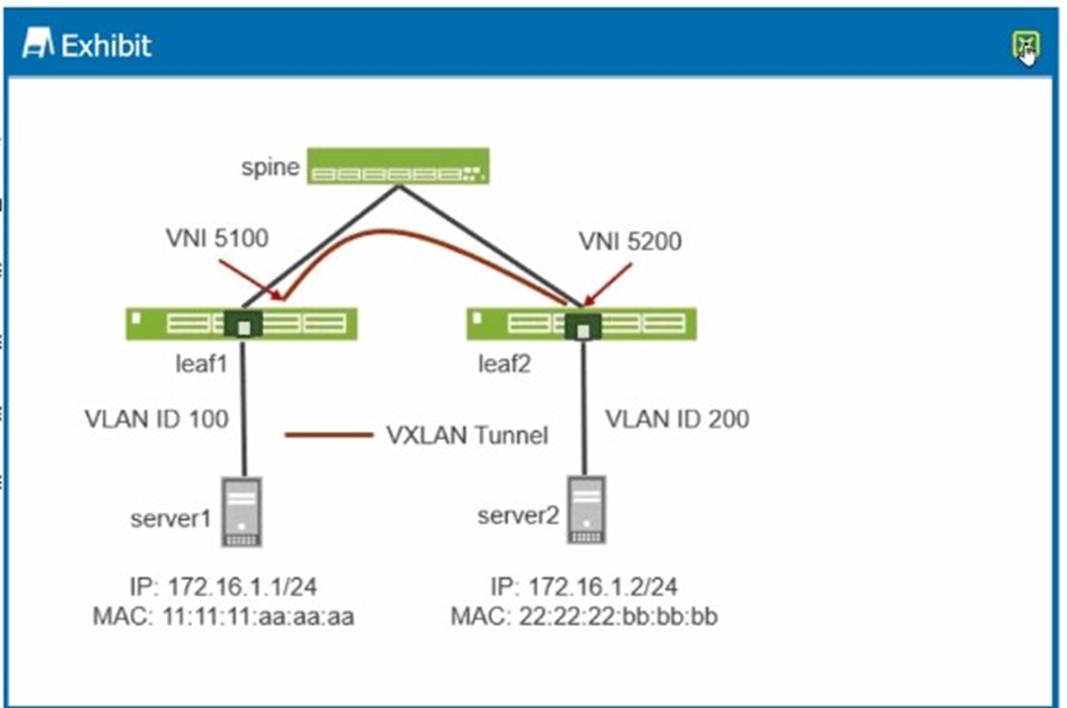

Exhibit.

A VXLAN tunnel has been created between leaf1 and Ieaf2 in your data center. Referring to the exhibit, which statement is correct?

1. A. Traffic sent from server1 to server2 will be dropped on Ieaf2.
2. B. Traffic sent from server1 to server2 will be tagged with VLAN ID 100 on Ieaf2 and forwarded to server2.
3. C. Traffic sent from server1 to server2 will be tagged with VLAN ID 200 on Ieaf2 and forwarded to server2.
4. D. Traffic sent from server1 to server2 will be dropped on leaf1.

Correct Answer: D

You are implementing seamless stitching between two data centers and have a proposed configuration for a border leaf device.
In this scenario, which two statements are correct? {Choose two.)

1. A. The translation-vni must match in both data centers.
2. B. The translation-vni must be different in each data center.
3. C. The ESI must be different in each data center.
4. D. The ESI must match in both data centers.

Correct Answer: BD

You are deploying an IP fabric using EBGP and notice that your leaf devices are advertising and receiving all the routes. However, the routes are not installed in the routing table and are marked as hidden.
Which two statements describe how to solve the issue? (Choose two.)

1. A. You need to configure as-override.
2. B. You need to configure a next-hop self policy.
3. C. You need to configure loops 2.
4. D. You need to configure multipath multiple-as.

Correct Answer: CD

You are deploying an IP fabric with an oversubscription ratio of 3:1. In this scenario, which two statements are correct? (Choose two.)

1. A. The oversubscription ratio decreases when you add leaf devices.
2. B. The oversubscription ratio remains the same when you remove leaf devices.
3. C. The oversubscription ratio increases when you remove leaf devices.
4. D. The oversubscription ratio remains the same when you add leaf devices.

Correct Answer: CD
