FCSS_SDW_AR-7.4 Free Practice Test

Refer to the exhibit.

The exhibit shows output of the command diagnose sys adwan aervice4 collected on a FortiGate device.
The administrator wants to know through which interface FortiGate will steer traffic from local users on subnet 10.0.1.0/255.255.255.192 and with a destination of the social media application Facebook.
Based on the exhibits, which two statements are correct? (Choose two.)

1. A. When FortiGate cannot recognize the application of the flow, it steers the traffic through the preferred member of rule 3, HQ_T1.
2. B. There is no service defined for the Facebook application, so FortiGate appliesservice rule 3 and directs the traffic to headquarters.
3. C. FortiGate steers traffic for social media applications according to the service rule 2 and steers traffic through port2.
4. D. When FortiGate cannot recognize the application of the flow, it load balances the traffic through the tunnels HQ_T1. HQ_T2. HQ_T3.

Correct Answer: CD

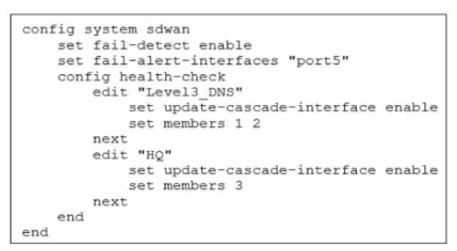

Exhibit.

Which action will FortiGate take if it detects SD-WAN members as dead?

1. A. FoftiGate bounces port5 after it detects all SD-WAN members as dead.
2. B. FortiGate fails over to the secondary device after it detects port5 as dead.
3. C. FortiGate sends alert messages through poft5 when it detects all SD-WAN members as dead
4. D. FortiGate brings down port5 after it detects all SD-WAN members as dead.

Correct Answer: D

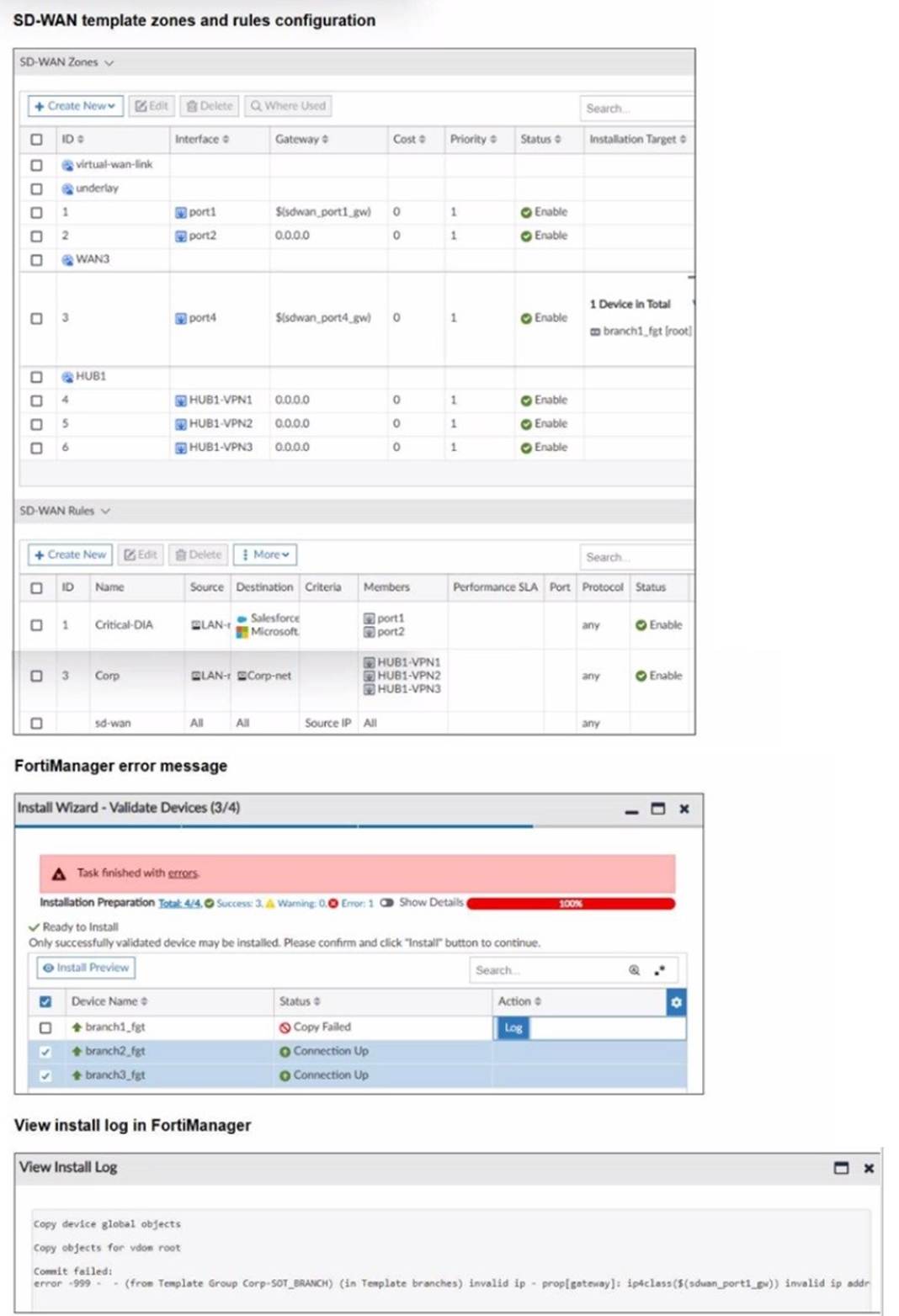

Refer to the exhibits.

You use FortiManager to configure SD-WAN on three branch devices.
When you install the device settings. FortiManager prompts you with the error "Copy Failed" for the device branch1_fat When you click the log button. FortiManager displays the message shown in the exhibit.

1. A. Based on the exhibits, which statement best describes the issue and how you can resolve it?
2. B. Remove the installation target for the SD-WAN member port4. You cannot combinemetadata variable and installation targets.
3. C. Gateways forall members in a zone must be defined the same wa
4. D. Specify the gateway of the SD-WAN member port! without metadata variables.
5. E. Check the metadata variable definitions, and review the per-device mapping configuration.
6. F. Check the connection between branch1_fgt and FortiManager

Correct Answer: A

Exhibit.

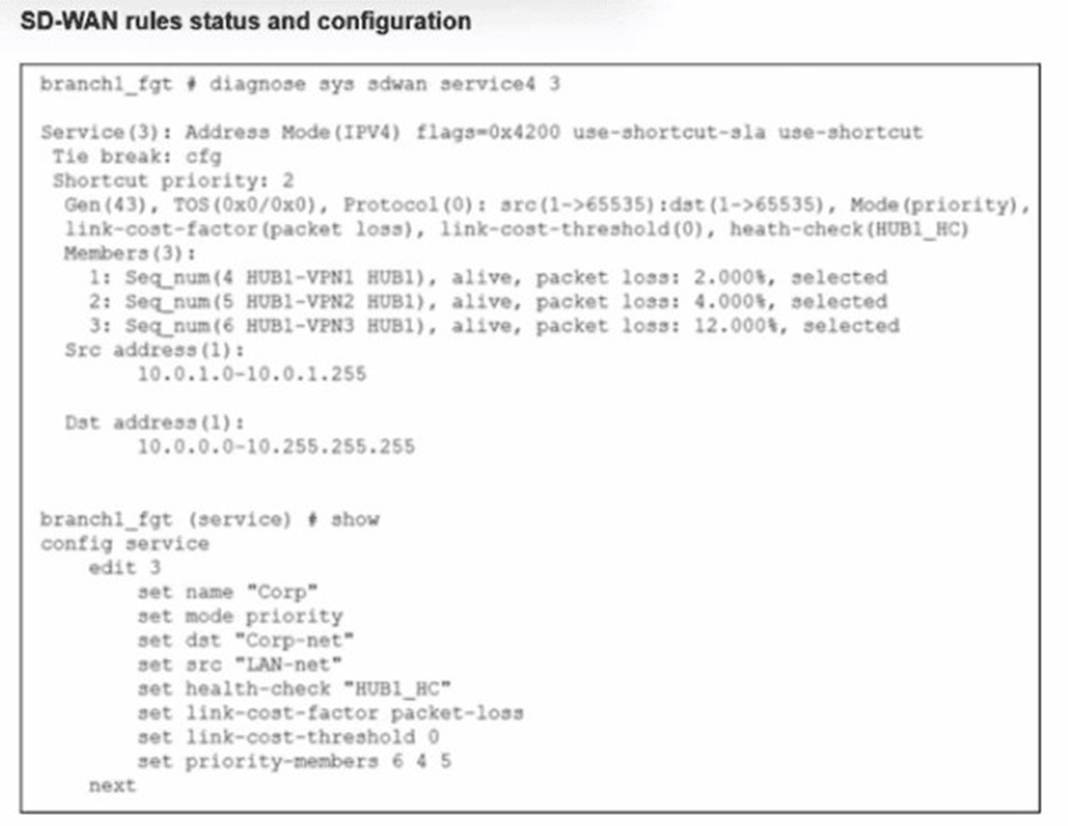

Refer to the exhibit, which shows the SD-WAN rule status and configuration.
Based on the exhibit, which change in the measured packet loss will make HUB1-VPN3 the new preferred member?

1. A. When HUB1-VPN1 has 4% packet loss
2. B. When HUB1-VPN1 has 12% packet loss
3. C. When HUB1-VPN3 has 4% packet loss
4. D. When all three members have the same packet loss

Correct Answer: D

You are planning a new SD-WAN deployment with the following criteria:
- Two regions
- Most of the traffic is expected to remain within its region
- No requirement for inter-region ADVPN
To remain within the recommended best practices, which routing protocol should you select for the overlays?

1. A. OSPF for the routing within each region and EBGP between the regions.
2. B. IBGP with BGP on loopback within each region and EBGP between the regions.
3. C. IBGP with BGP per overlays within each region and IBGP with BGP on loopback between the regions.
4. D. IBGP within each region and between the regions.

Correct Answer: B
